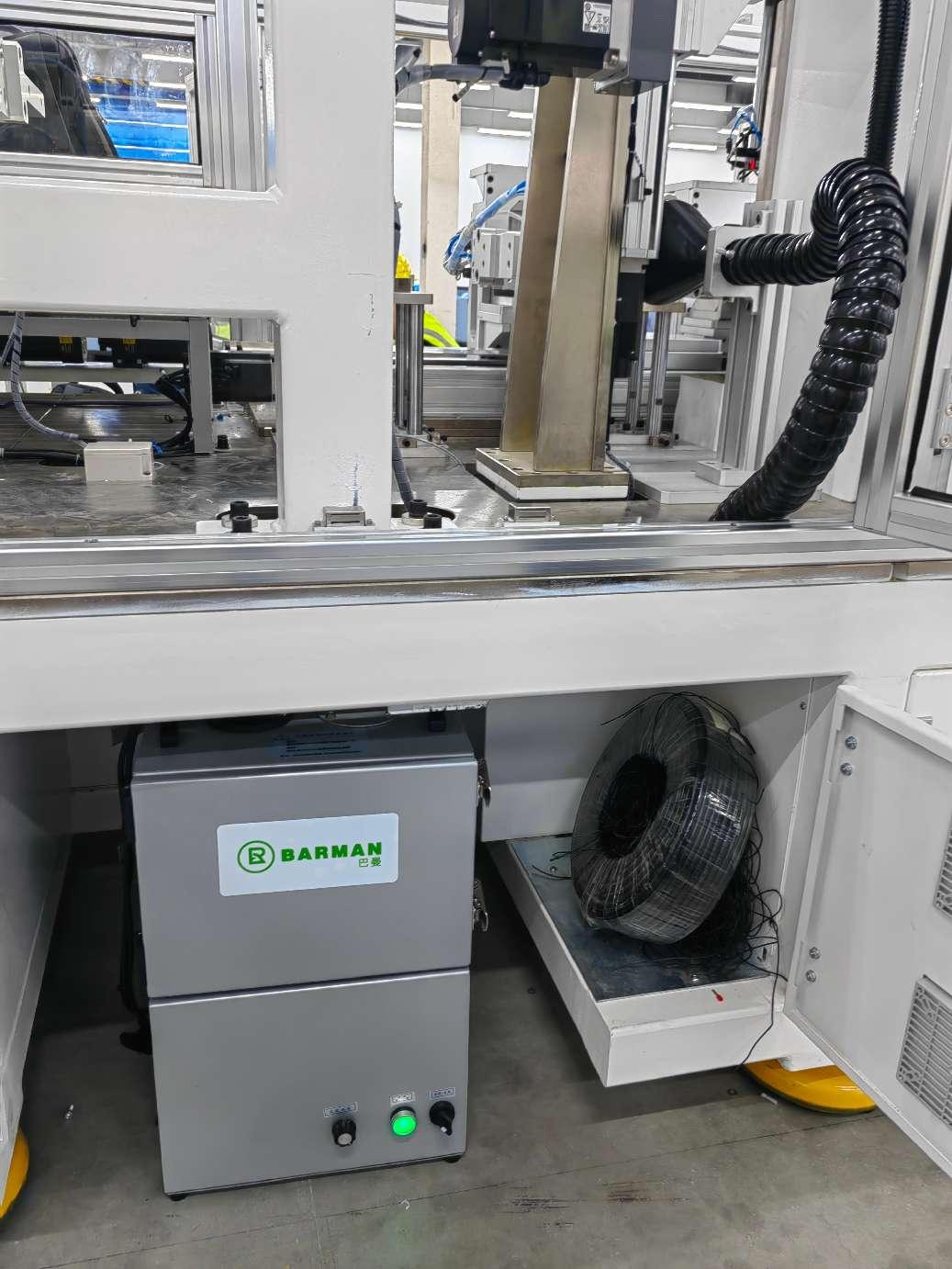

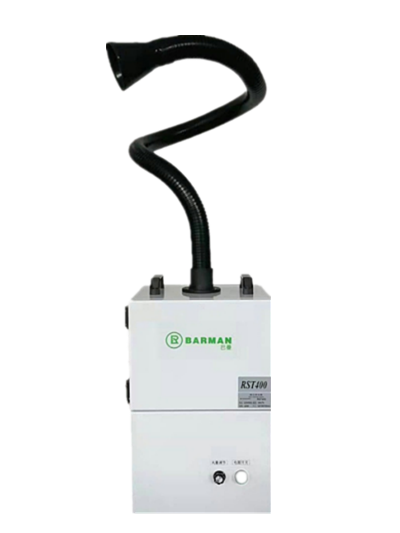

Smoke purifier RST400 series filter cylinder dust purifier is our company combined with the environmental protection emission requirements and the factory for dust treatment requirements research and development of filter cylinder tin welding dust purifier, with convenient movement, stable and reliable, small footprint and other characteristics. This machine can be applied to laser marking, tin welding, wave welding, reflux furnace, laser welding, engraving, marking, cutting and other dust purification field; used in the circuit board and electronic industry marking, tin welding process and field single-phase power supply.
voltage | V | 220/50 | |
power | W | 400 | |
vacuum degree | Pa | 4800 | |
air flow rate | m³/h | 380 | |
filter area | cm2 | 1800 | |
Dust box volume | L | / | |
power line | M | 3 | |
size | CM | 320*300*520 | |
Inhalation caliber | mm | 1 * Ø 50 (standard standard) | |
noise | dB | 70 | |
weight | Kg | 30 | |
product description: | |||
Endovirus power part Using industrial grade brushless fan, high wind pressure, low energy consumption, can long 24 hours continuous work, strong, durable, longer life. The motor after silencing processing, only 61 decibels, no impact on the user.
|
| ||

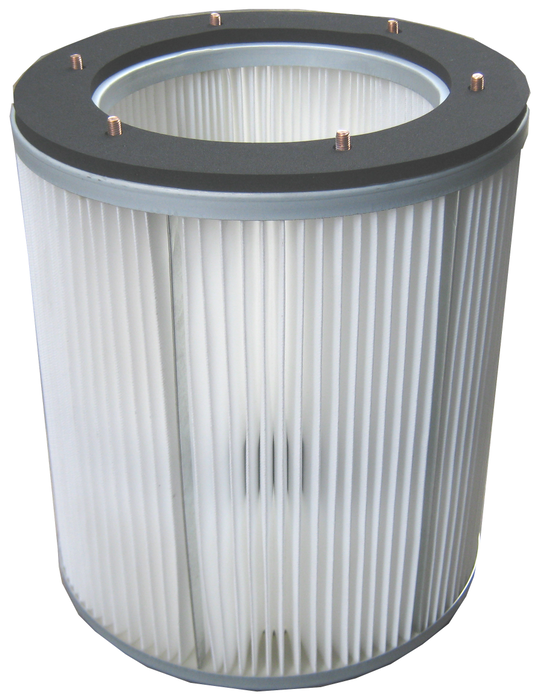

l filter system Filter system is an important part of purification vacuum cleaner, and is the decisive factor of lasting suction and clean emission of soot purifier. With a large area of the filter cartridge filter. The toray "TORAY" polyester fiber filter paper substrate imported from Japan is used, the surface is coated with film, the filtration accuracy is more than 99% for the dust with particle size of 0.3 μ m, and the surface after PTFE coating is smooth, and the dust and a small amount of moisture are not easy to adsorb.
|
| ||

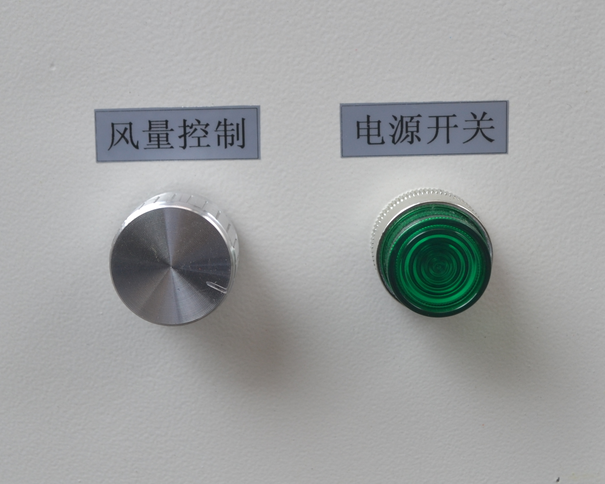

Electrocontrol system of eggplant The control system adopts PWM speed regulation, and users can continuously and accurately adjust the air volume according to the amount of smoke production, which is practical and convenient, and has environmental protection and energy saving.
|
